Description

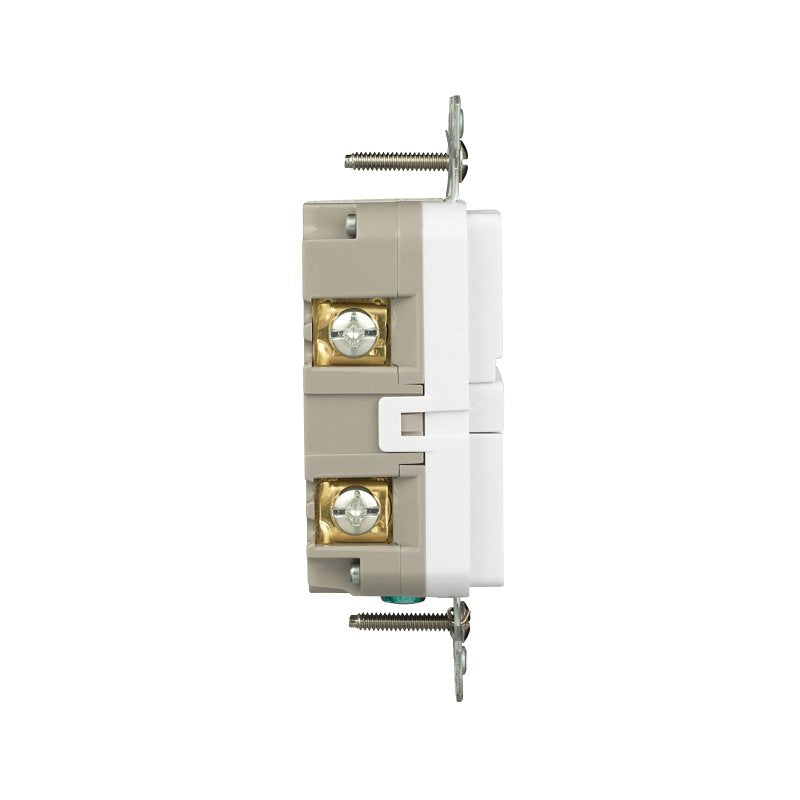

xEaton Tamper-Resistant Self-Test GFCI Receptacle, 125 V, 20 A, Number of Poles: 2, Short Circuit Current Rating: 10 kA, Grounding Type: Automatic, Number of Wires: 3, Wire Size: 14 to 10 AWG, Wiring Type: Back, Side, NEMA Rating: NEMA 5-20R, Operating Temperature: -35 to 66 deg C, Polycarbonate/Steel/Thermoplastic/PVC, White, Dimensions: 4.19 in H x 1.69 in W
Slimmer design for easy installation, leaving more room for wires in the box
Automatically self-tests periodically to ensure GFCI protection
GFCIs incorporate lock out functionality to protect against mis-wired line load connections and GFCI circuitry damage
Wider button wells for easy test and reset
Intuitive LED status indicators for trip and end of life states
Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
Meets and exceeds 10 kA short-circuit testing and underwriters laboratories
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
External back wire clamps provide visual confirmation of secure termination
