Description

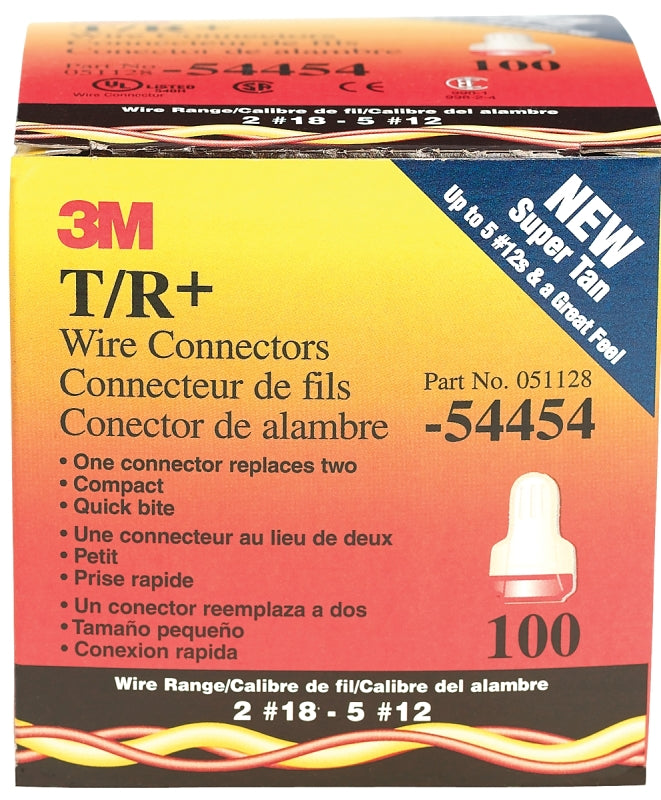

xSmooth, comfortable feel, with a quick bite active (live) spring. Corrosion-resistant coating design, compact size and red miniskirt. Wire range of 2 number 18 and up to 5 number 12. Replaces the yellow, tan or red connectors in the majority of all field applications. Copper conductors only, No 22 thru No 8 solid and/or stranded. Wing design for a better grip. Voltage rated 600 V maximum building wire and 1000 V maximum signs and lighting fixtures. Maximum operating temperature of 221 deg F. Can be installed with 3M WCD-P wire connector drivers. UL listed and CSA certified as a pressure wire connector. Tan with red skirt.
Offers a strong bite in a pigtail application for a long-lasting connection
One connector replaces three (yellow, red and tan) in the majority of all field applications
The T/R+ is dual color-coded so this one connector replaces your traditional tan and red connectors
Ideal for many applications including industrial and residential construction, automotive and appliance applications
Use with copper conductors ranging from 22 to 8 AWG
Built with polypropylene and thermoplastic elastomer material
Tan/red connector is flame-retardant and handles well in temperatures up to 221 deg F
Use on building wire rated 600 V and on signs, fixtures or luminaires rated 1000 V
