Description

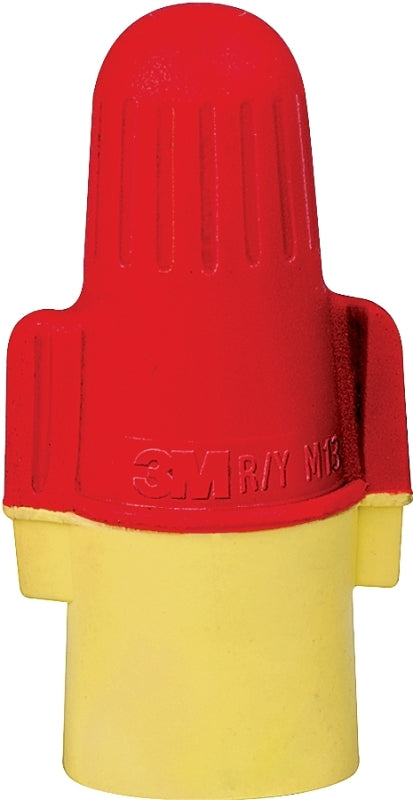

xReplaces both red and yellow wing style connectors. Red with yellow skirt. Maximum operating temperature is 221 deg F. 600 V maximum. 22 AWG minimum wire gauge, 8 AWG maximum wire gauge. UL, CE, IEC and CSA agency approved.
Offers a strong bite in a pigtail application for a long-lasting connection
An expandable spring lets you take in more wire uptake and reuse
The R/Y+ is dual color-coded so this 1 connector replaces your traditional red and yellow connectors
Great for all types of jobs - from industrial and residential construction, to automotive, marine and appliance applications
Use with copper conductors ranging from 22 to 8 AWG
Built with polypropylene and thermoplastic elastomer material
Red/yellow connector is flame-retardant and operates in temperatures up to 221 deg F
Use on building wire rated 600 V and on signs, fixtures or luminaires rated 1000 V
