Description

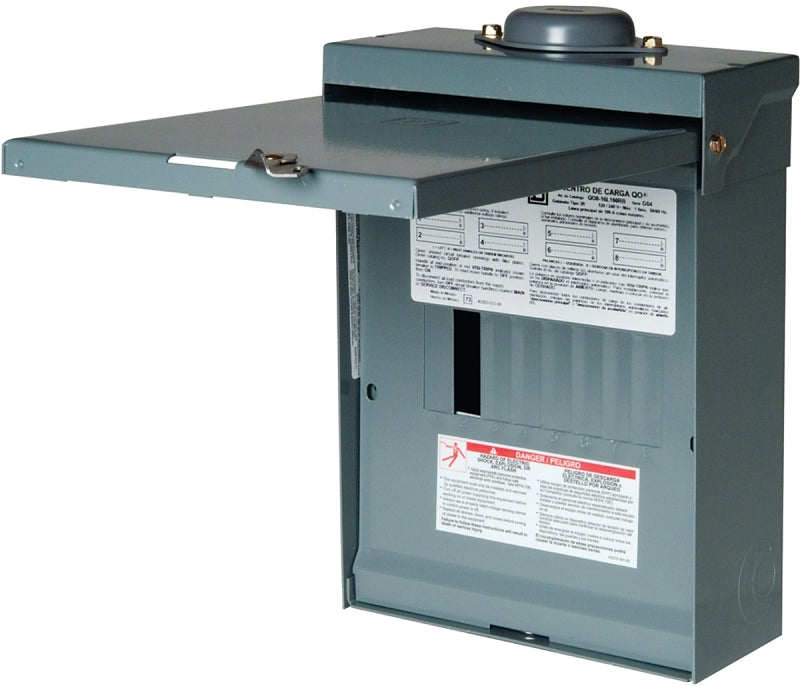

xMain lug outdoor load center, 100 A, 8 space/16 circuit, has a 2-1/2 in maximum type B hub in the top end wall, a 1-1/2 in maximum knockout in the bottom end wall and a B-cap covering on the 2 in bushed opening. NEMA type 3R enclosure with a rainproof cover for outdoor use. ANSI certified and UL listed.
Indoor and outdoor versions
Separate flush or surface mount covers
Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
