Description

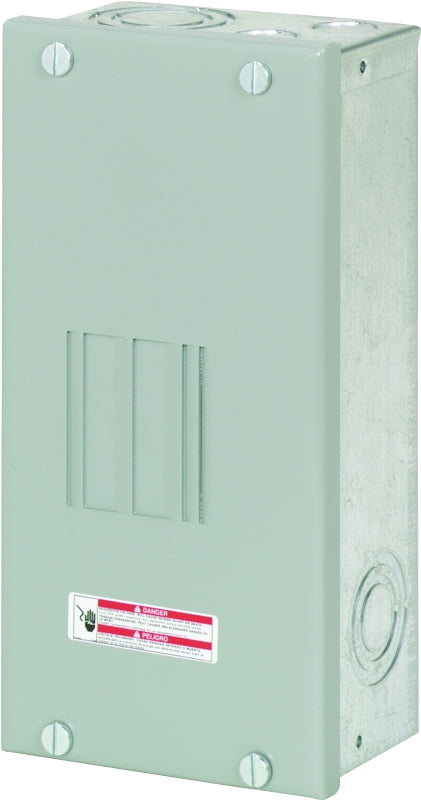

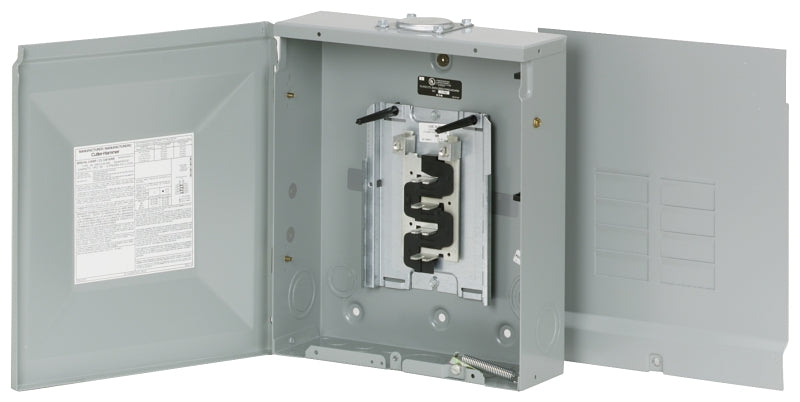

xLoad Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Larger knockout provides easier installation and time savings
Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
2/0 lug easily removable and can be installed in any location on the neutral bar
Type BR AFCI breakers, compact design for easier wiring and improved wire way access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
Excellent conductivity and corrosion resistance, copper bus options available
Drywall marking on enclosure - indicates proper mounting depth for flush applications
Tangential center knockout, easier installation for conduit applications
Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
Neutral bus (strap) is easily removable for sub-panel applications
