Description

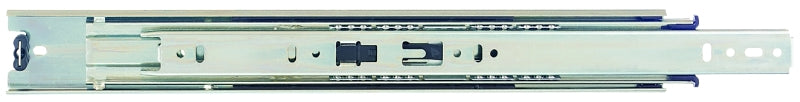

xMedium-duty, precision slides for box drawer or pedestal file drawers up to 24 in wide. For frame and frameless construction. May be used horizontal position with a reduced load rating of 30 lb. Height of 1-13/16 in, required clearance of 1/2 in plus 1/32 in minus 0 each side.Features telescoping, full extension on precision steel ball bearings. 32 mm hole pattern with direct access mounting. Lever disconnect for easy drawer removal. Ball retainer latch and ramps, for easy drawer insertion. Drawer adjustment without removal. Flexible mounting tabs self-adjust to side clearance. Metal ball retainer holds 3 bearings per inch of race for smooth and quiet motion. Polymer stop cushions. Non-handed. Packaged with screws and installation instructions. Pack of 2
Full extension drawer slide features an ergonomically designed push-in lever release for easy drawer removal
The reversed flex tabs allow improved slide performance with side clearance tolerance adjustments
8400 is an unhanded design with traditional 32 mm hole pattern that supports industry standards
Recommended for drawers up to 24 in wide
Rolled ball-bearing raceway allows lateral loads to be carried by ball-bearings and not transferred to bushings sliding on metal
Mounting hole is provided for face frame applications to eliminate the need for a separate bracket
Access holes allow for drawer adjustments at full extension without removing drawer
