Description

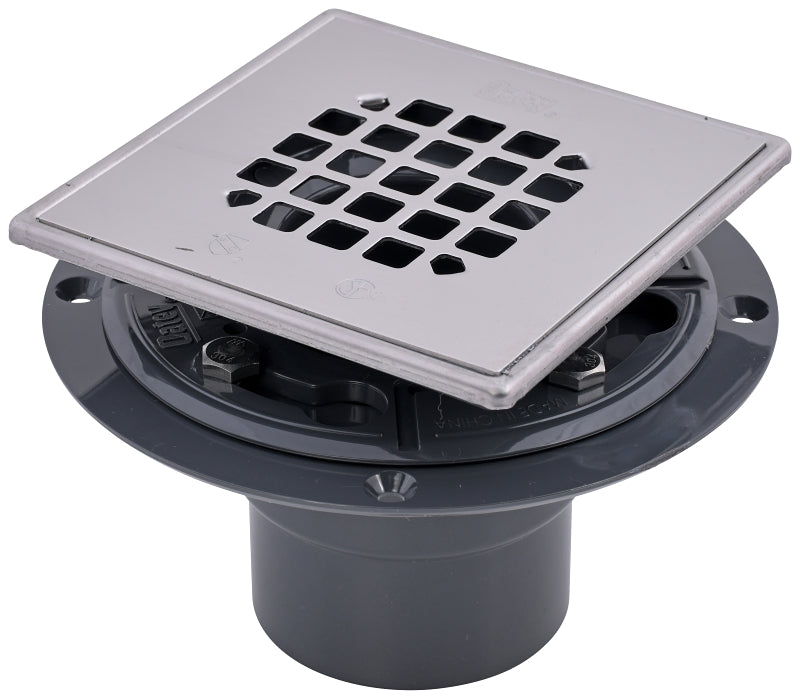

xOatey® 130 series shower pan drains shall be used in residential and commercial applications when connecting to a DWV system. Using the countersunk holes, secure the flange base to the subfloor with an approved fastener. Shower pan drain shall have a solvent weld connection over 2 in SCH 40 DWV hub connection which conforms to ASTM D2665 (PVC) or D2661 (ABS). Shower drain base available in both PVC and ABS can be solvent welded over 2 in SCH 40 or solvent welded in side 3 in SCH 40 DWV. Strainer shall meet all necessary load and flow requirements for installations in shower areas. Base accepts 130 series 1/4 turn test plug, which holds 40 ft of head pressure. Clamp collar ring fastens by use of hex bolts that thread into brass inserts and has improved weep holes and channels, which can be inverted to achieve an additional 1 in finished height.
Reversible clamping collar adds 1 in of height and contains double weep holes and weep channels to optimize and ensure drainage
1/4 turn, tool-free test plug that can be removed by hand or by notched pipe
