Description

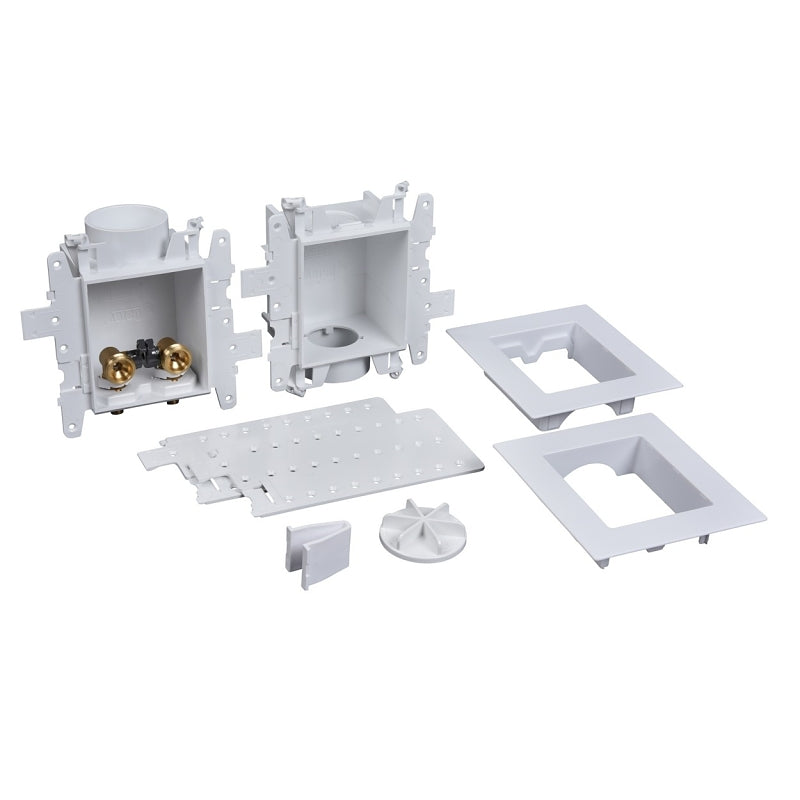

xMODA Supply box system is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent® air admittance valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA Supply box system is the ultimate solution for speed and flexibility. Oatey MODA™ washing machine outlet boxes shall be used in residential or commercial applications requiring supply valves and a waste drain recessed in the wall. The MODA™ washing machine assembly contains a valve box and a drain box, connected by inter-locking wing flanges that can be easily disassembled and re-assembled. The inter-locking wing flanges shall allow installation on a single stud, between two studs or on separate walls, without the need for additional components. Valves shall be a two-piece design, permitting field replacement and shall be secured with a stainless steel retention clip. Valves are available with or without water hammer arrestors and shall be installed upright or inverted. The assembly shall include a removable quarter-turn plug for DWV testing and shall include an emergency drain port for added protection from hose leaks.
Using a single box platform provides significant convenience to installers
Unique interlocking wing flanges accommodate on-stud, straddle-stud and three box installations
Advanced snap lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply and drain crossovers
Dual box design provides ideal options for stacked washer, dryers and space limited laundry rooms
Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
Two-piece valve design makes valve replacement easy to repair, without damaging drywall
Valves rated to 150 psi air and 250 psi water
