Description

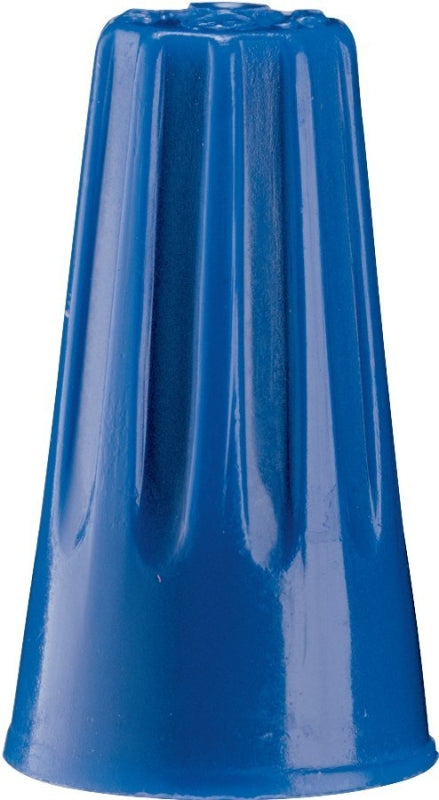

xThe industry's standard twist on connector with quality performance and durability. GB™ specifies this connector for a wire range of 22 to 16 AWG and recommends a wire combination of min (3) #22 wire and max (3) #16. It is blue in color for easy color code identification. Recommended for copper to copper connections only. Made from tough, thermoplastic shells which guard against hydrocarbons, diluted acid or alkaline solutions.
Designed to require fewer turns to reach required torque and meet or exceed UL pull-out and dielectric test requirements
Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
Flame-retardant properties resist heat distortion up to 221 deg F
High-dielectric shell features deep skirt design to prevent exposure of bare wire
Rated at 300 V max
Copper to copper connections only
